Four-wheel truck 2.5 - 3.0t

2900 - 7500 mm
2500 - 3000 kg

PureEnergy concept with optimised energy efficiency
Compact lift mast with extended field of vision
Lateral battery replacement – simple and fast
Individually customisable features and controls
Ergonomic workplace for fatigue-free work

EFG 425/ 425k/ 430/ 430k

Our versatile and efficient series 4 electric four-wheel forklifts are suitable for a great variety of indoor and outdoor applications – from industry-specific use with custom-built attachments to fast and safe handling of heavy loads. Thanks to our PureEnergy concept, we can significantly reduce energy consumption and guarantee maximum efficiency through the most advanced 3-phase AC technology combined with compact control and hydraulic units. Based on test results according to VDI cycle, our series 4 EFG consume up to 10 per cent less energy than comparable models. The compact lift mast with extended field of vision lets your driver benefit from the best all-round visibility available in the market. Other individually adjustable controls guarantee flexibility and safety. Ergonomically perfected and intuitively steerable, the series 4 EFG trucks are our universal power horses for demanding operations.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 8 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

PureEnergy technology concept

Advanced 3-phase AC technology.
Compact control system and compact hydraulic unit.
Needs-oriented control of the hydraulics/motors.

Individual performance packages

Efficiency package with curveCONTROL.
drive&liftPLUS package with higher drive/lifting speeds.

Available with lithium-ion technology

High degree of availability thanks to extremely short charging times.
No battery replacement required.
Cost savings due to longer service life and low maintenance compared with lead-acid batteries.
No charging rooms and ventilation required as there is no gas formation.

Safety systems

Automatic reduction of the travel speed when cornering thanks to curveCONTROL.
No roll-back on ramps or inclines due to wheel stop, even when the truck is switched off (optional).
Excellent stability thanks to extremely low centre of gravity and high pivot steer axle.

Optional operator assistance systems

accessCONTROL: Access control system which only unlocks the truck once a sequence of safety checks has been completed.
driveCONTROL: Speed control, which automatically reduces the speed both when cornering and from a defined lift height.
liftCONTROL: Lift speed control, which reduces the travel speed as well as the tilt speed of the mast beginning at a defined lift height. The tilt angle is shown on a separate display.

Individually adjustable operating concept

Selection of 5 freely adjustable travel programmes.
Stepless single-point adjustment of armrest and steering column in 2 axes.

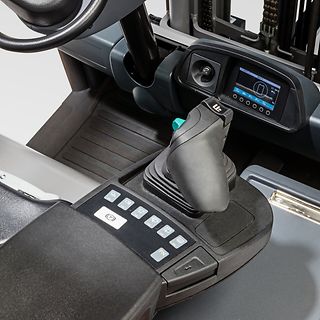

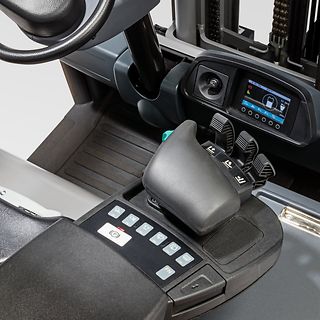

A choice of 4 different control elements.
Adjustable lever and controls angle.
Single or double pedal operation.

Ergonomic workstation

Low, highlighted entry step with level footwell.
Slim steering column for maximum knee and legroom.
High-resolution, high-contrast, full-colour TFT display with intuitive user interface.
Compact nested profile package with excellent visibility.
Unobstructed view thanks to special overhead guard design, optimised chain and hose configuration.
Operator-oriented storage concept for intuitive operation.
Large, adjustable armrest with different upholstery fabrics and spacious storage compartment.
External power supply via optional USB port.
Limited vibration as the cab is not directly connected to the frame (floating cab).



Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EFG 425k	2,500 kg	7,500 mm	17 km/h	3,446 mm	80 V
EFG 425	2,500 kg	7,500 mm	17 km/h	3,591 mm	80 V
EFG 430k	3,000 kg	7,500 mm	17 km/h	3,467 mm	80 V
EFG 430	3,000 kg	7,500 mm	17 km/h	3,612 mm	80 V
EFG S30	3,000 kg	7,500 mm	17 km/h	3,612 mm	80 V
