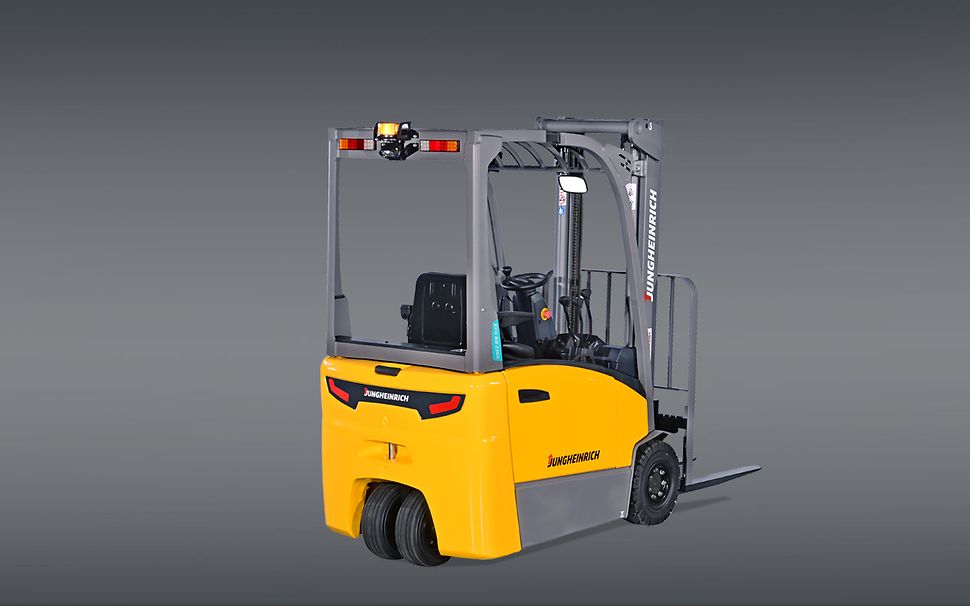

Electric three-wheel counterbalance forklift truck 1.6-2t

3000 - 6500 mm
1600 - 2000 kg

Lateral battery exchange
Precise hydraulic control
High-performance AC motors and the latest CAN bus technology
Tailored performance based on application with efficiency and drive&liftPLUS models
High residual capacity

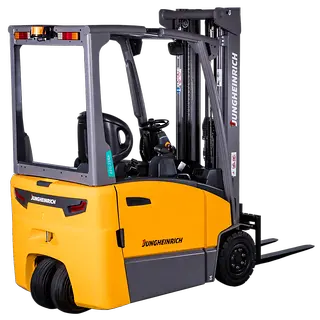

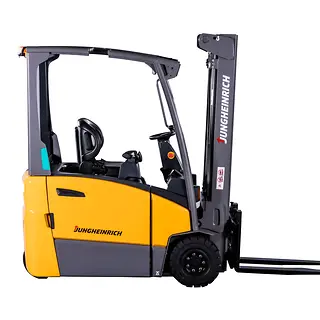

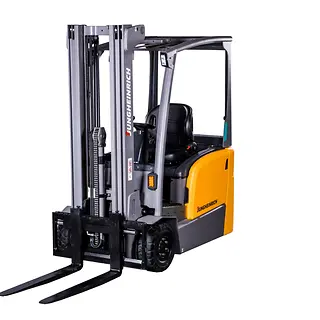

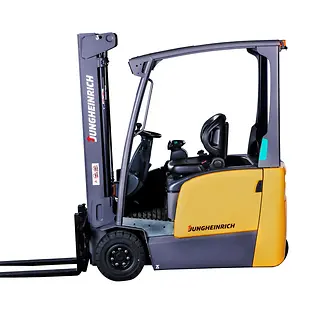

EFG MB 216k/ 218k/ 220

The EFG MB series is designed for versatile use in all transport and stacking operations using the latest 3-phase AC technology. The frame allows for lateral and vertical battery exchange. For lateral battery exchange, only a pallet mover is required. This gives maximum flexibility for three-shift operation. Low total cost of ownership, together with reduced maintenance requirements, guarantees outstanding economic efficiency. Our EFG MB trucks offer excellent mast visibility with operators having an expanded field of vision. Thanks to the lowered design of the dashboard, visibility to the front is also optimised. Not only do we offer robust design and future-oriented technology, but also the best conditions for ergonomic working and cost-effective solutions, both indoors and outdoors.

Features

Performance

High output AC dual-drive motors and hydraulic motors deliver outstanding driving and lifting performance.
Jungheinrich's unique electric-hydraulic system provides state-of-the-art fast, precise and smooth hydraulic controls.
The rigid mast profile and low-gravity truck design provide a high residual capacity.

Maintenance-free electric motors

High torque for rapid work cycles.
Up to 30% greater energy efficiency than with DC motors.
Fully enclosed and protected up to IP54. Long life, even in dusty and damp conditions.
Proven AC technology: dual drive motor, hydraulic pump motor.
High performance, low energy consumption, less maintenance.

Highly efficient lithium-ion battery

Produced by Jungheinrich, safe and reliable.
Integrated battery management system.
High-performance batteries, long life span.
Can completely replace lead-acid batteries.
With counterweight, no additional assembly weight required.
Maintenance-free, easy to charge and use, high efficiency.

Active safety

curveCONTROL automatically reduces travel speed when cornering.
Deactivation of the drive and hydraulic functions when seat is unoccupied.

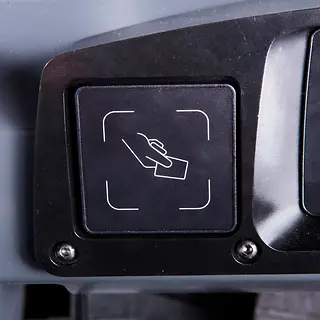

EasyAccess for authorised users only, either with PIN code or transponder card.
Electronic and hydraulic overload protection guard.
Emergency disconnect switch easily accessible.
Reliable data transfer between electronic components using CAN bus technology.
The whole truck has the IPX5 protection.
Excellent drive dynamics and performance also demand a high degree of safety.

Additional safety features

Strobe light on the overhead guard.
Red or blue spotlight to warn pedestrians in the nearby area.
accessCONTROL: Access control system only allows driving and hydraulic operation when the safety belt is locked.
driveCONTROL: Speed control, which automatically reduces the speed from a defined lift height.
Wet disc brake: maintenance-free disc service brake immersed in oil provides low service cost benefits and significantly improves the reliability of the braking system.
For the operator, truck and load, due to a range of optional operator assistance systems.

Superior operator comfort

Precise hydraulic power steering, which requires the minimal amount of effort without kickback.

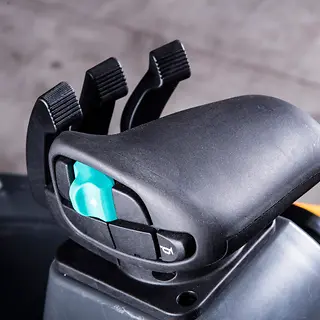

Comfortable, fatigue-free operation of direction and hydraulics with soloPILOT.
High-resolution TFT 2” display (4” as an option) provides up-to-date information on vital truck functions at a glance.

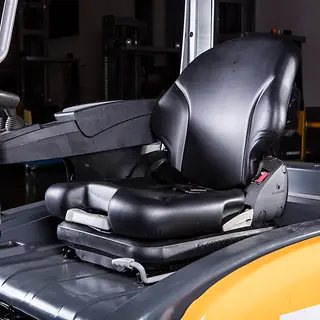

Adjustable steering column and comfort seat for optimum seating position. Convenient storage for documents and the operator’s belongings. Moveable armrest available as an option.
Clear view: mast and fork carriage allow for excellent visibility of the load and of the route ahead. LED working light gives best view in dark areas and reduces maintenance costs.
The functionality and ergonomics of the operator environment guarantee relaxed and fatigue-free work during long shifts.

Main options

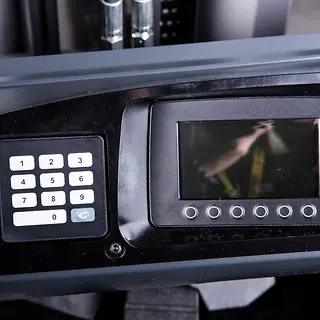

accessCONTROL & EasyAccess PinCode / Transponder
drive&liftPLUS options package
multiPILOT & duoPILOT with double pedal; full suspension seat with adjustable armrest

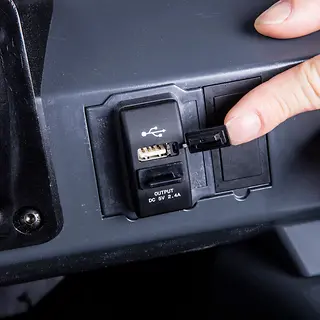

USB charging interface
Spotlight in red / blue; 4” TFT display
Cold store version (-28℃) & tropics version (up to 50℃)

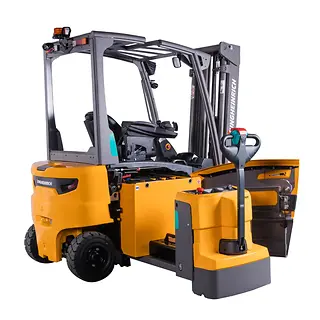

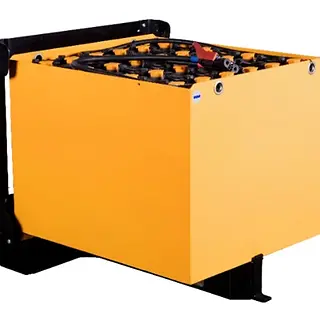

Lead acid battery capacity 48 V / 500 - 750 Ah; lithium-ion battery capacity 48 V / 390 Ah; spacer and T-parking station (for easy lateral battery exchange)

Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EFG MB 216k	1,600 kg	6,500 mm	17 km/h	2,899 mm	48 V
EFG MB 218k	1,800 kg	6,500 mm	17 km/h	2,899 mm	48 V
EFG MB 220	2,000 kg	6,500 mm	17 km/h	3,007 mm	48 V

EFG MB 216k/ 218k/ 220
