Order picker 1.0t

1000 - 2800 mm
1000 kg

Maximum picking performance with lowest energy consumption
Powerful engine for high handling capacity

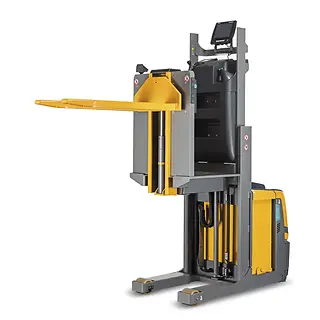

Optionally with walk-on load section (L) or auxiliary lift (Z)
WMS connection via Logistics Interface for optimised processes

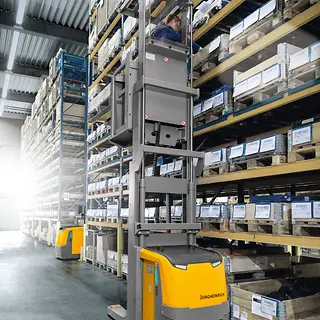

Picking height up to 4.6 m

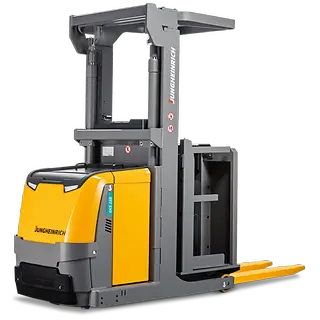

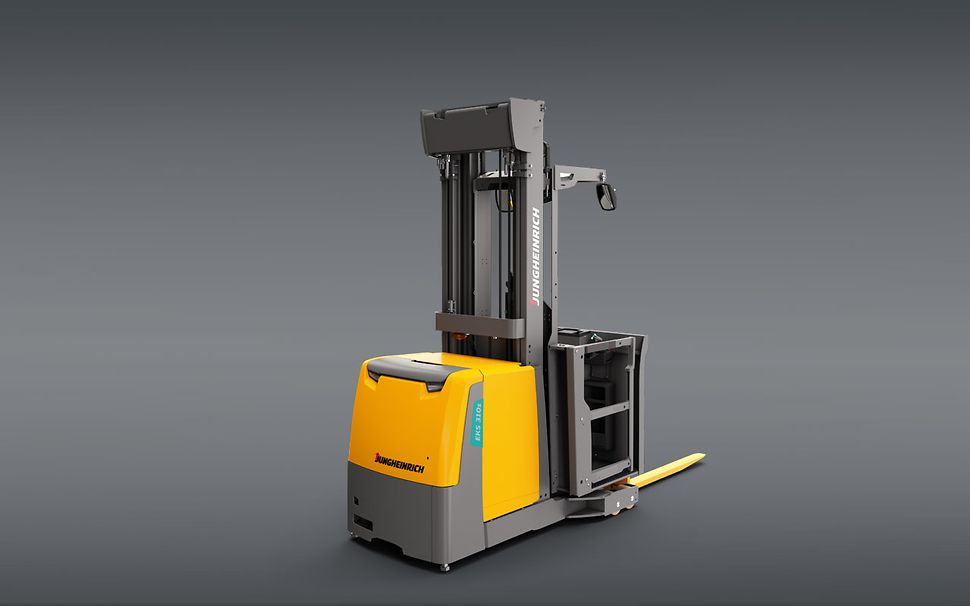

EKS 110

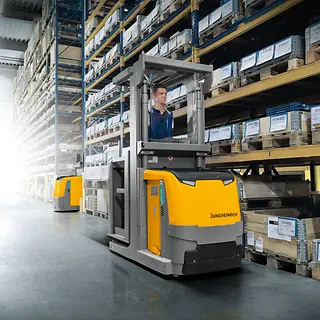

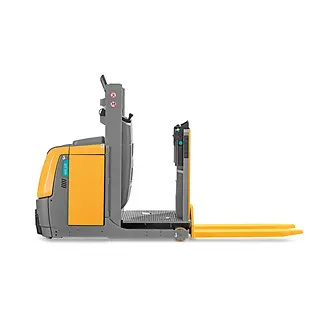

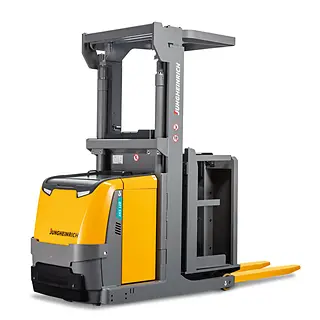

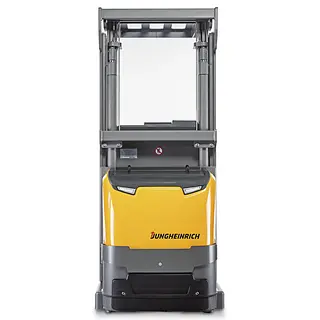

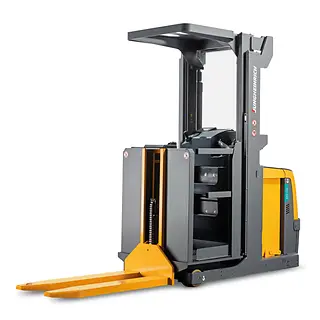

Our solid and ergonomic medium and high level order picker EKS 110 is the ideal partner for order picking up to the third racking level in the wide aisle. Thanks to a maximum platform height of 3 metres picking heights of up to 4.6 metres can be reached. Due to the self-supporting construction open and closed pallets can be transported. The energy-saving 3.2 kW drive system impresses with high acceleration values and high battery capacity which allows long-term use even in multi-shift operation. Safe working is ensured by the low entry height, increased grip of the standing platform as well as optimum freedom of movement while entering and exiting. A driver's seat designed for gentle work: With intuitive arrangement of the controls, a 4-inch display and three selectable driving programs. Additionally various equipment options and assistance systems make this order picker flexibly applicable. So the driver can simply hop on and drive off.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 8 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Features

Efficient order picking

For toughest applications thanks to a capacity of up to 1000 kg with a load centre of 600 mm.
Stable cornering thanks to a low load centre provides a sense of security in every travel situation.

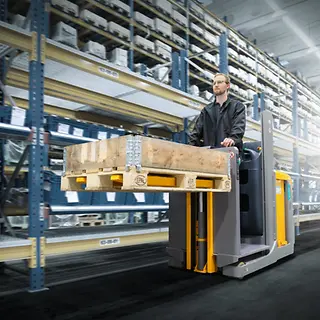

Lowering of the walk-on load section (optional) means that the platform and loading device is lowered to the lowest level possible when order picking – providing the lowest entry every time with no depositing of the pallet.
Particularly with low lift heights and frequent entry and exit, the touch mode provides a fast way of reaching the next picking point.
The touch mode is located on the backrest to enable direct access to the loading device.

Long operating times with lead-acid battery

Energy-efficient 3-phase AC technology and high battery capacities allow for long operating times.
Different battery sizes available ranging from 375 Ah to 620 Ah.
Lateral battery exchange for multi-shift operation (optional).

Available with lithium-ion technology

High availability thanks to extremely short charging times.
No battery exchange required.
Saving costs due to longer service life and low maintenance in comparison with lead-acid batteries.
No charging rooms and ventilation required as there is no build-up of gas.

High process reliability thanks to WMS connection

The EKS 110 is linked to a warehouse management system (WMS) via Jungheinrich Logistics Interface: Orders are easily forwarded to the truck control system via the interface software so that additional functions are created.
Process reliability thanks to real-time feedback to the WMS.
Targeted reduction of safety risks, since the driving parameters can be influenced via the WMS.
Ergonomic order picking via an additional display in the load direction.
Saves time by confirming the orders with a push button.

Improved visibility

Better visibility in poorly lit areas thanks to integrated dayLED daytime running lights (optional).
LED working lights on the overhead guard can be used as additional running lights or to illuminate the racking when order picking (optional).
The optional LED workstation lighting ensures that the operator position is well lit.
Floor spot – significant reduction of risk to collide in blind spots due to a red dot of light projected onto the floor approx. 3 m in front of the truck (optional).

Robust design

High-quality stainless steel skirt raised extra high on the front panel.
Impact-protected steel drive panel protects the components behind it.
Optional rubber or steel bumper provides additional protection.

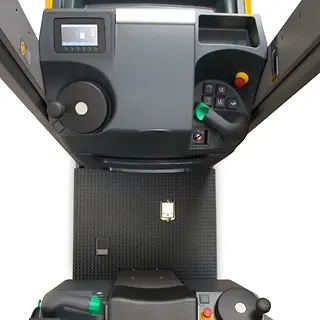

Ergonomic workstation

Low entry height for easy entry and exit.
Padded backrest for comfortable depositing of goods on the forks.
A continuous comfortable rubber mat provides noticeable relief for the operator.
The tilted steering wheel supports natural hand movements and thus protects the operator's joints.
As an alternative to conventional steering the optional jetPILOT is also available, which enables intuitive and convenient operation similar to a car.

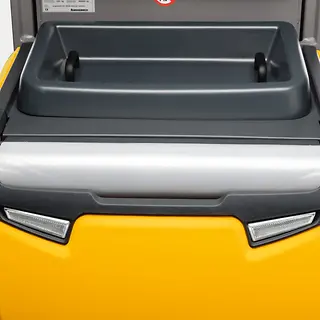

Good storage capabilities are offered by the integrated DIN A4 holder and other storage compartments.




Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EKS 110 L 100 E	1,000 kg	2,800 mm	13 km/h	2,890 mm	24 V
EKS 110 L 160 E	1,000 kg	2,800 mm	12 km/h	2,890 mm	24 V
EKS 110 L 190 E	1,000 kg	2,800 mm	12 km/h	2,890 mm	24 V
EKS 110 L 280 ZZ	1,000 kg	2,800 mm	11 km/h	2,980 mm	24 V

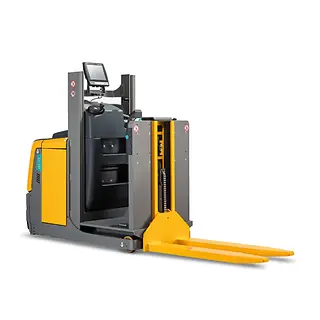

EKS 110 Z 100 E	1,000 kg	2,800 mm	13 km/h	2,895 mm	24 V
EKS 110 Z 160 E	1,000 kg	2,800 mm	12 km/h	2,895 mm	24 V
EKS 110 Z 190 E	1,000 kg	2,800 mm	12 km/h	2,895 mm	24 V

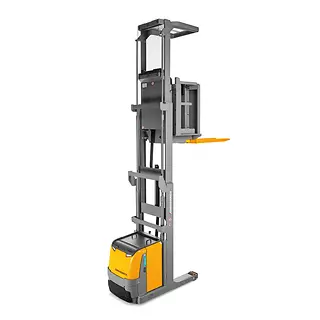

EKS 110 Z 280 ZZ	1,000 kg	2,800 mm	11 km/h	2,985 mm	24 V
