Pedestrian stacker 1.0 - 1.2t

2500 - 4700 mm
1000 - 1200 kg

Powerful and maintenance-free 3-phase AC motors
Proportional hydraulics for gentle lifting and two-stage lowering
Manoeuvrable and compact due to narrow aisle width
Built-in charger for easy battery charging (optional)
Different masts and lift heights available

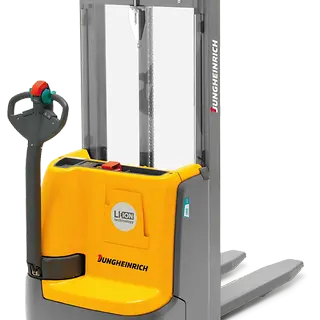

EJC 110/ 112

The robust and handy EJC Series 1 pedestrian stacker is a powerful assistant for stacking and transportation tasks in your warehouse. With its narrow working width, this stacker is particularly suitable for moving loads in confined spaces. Its manoeuvrability is supported by the slow travel function, which allows for safe moving with an upright tiller. The multifunctional tiller head is intuitive and can be used by right and left-handed operators alike, allowing the operator to focus fully on the stacking. This contributes to the overall safety in your warehouse. For flexible use, the robust and handy EJC Series 1 may be optionally equipped with a built-in charger, enabling fast and easy charging of the long-lasting batteries at any 230-V socket.

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Intelligent drive and steering technology

Greater performance while simultaneously reducing operating costs using 3-phase AC motors perfectly tuned to the in-house developed controller.
High efficiency with excellent energy management.
Fast acceleration.
Rapid direction change.
Maintenance-free drive motor without carbon brushes.

Long operating period with lead-acid battery

Long service life with battery capacities up to 200 Ah.
Built-in battery charger (optional) for straightforward charging at any standard 230-V socket (also available with rapid charging function for charging during a shift).

Always informed

2-inch display (optional) as central information and adjustment instrument.
Battery charge status, number of operating hours and event messages.
Choice of 3 travel programs.
Activation of the truck by EasyAccess via softkey, PIN code or optional transponder card.

Manoeuvrable and compact

Due to the short aisle width, optimum use in confined spaces.
Crawl speed mode with upright tiller possible.

Safe stacking and retrieval

Precise and gentle lifting of the load with the speed-controlled hydraulic motor.
Gentle depositing of the load via 2-stage depositing speed (EJC 110) and proportional hydraulics (EJC 112, optional with EJC 110).
4-wheel concept for maximum stability.
Safe distance between operator and truck due to the long tiller.
Less noise production with slow lifting via lift control.

Service-friendly design

Service access ports in the front apron allow bandages to be changed quickly.
Support wheel with bayonet mechanism enables wheels to be changed with the truck only slightly raised.
Tiller electronics sealed to protect against humidity and dirt as per IP 65.
Electronic controls and built-in charger (optional) sealed to protect against humidity and dirt as per IP 54.

Practical storage compartments

Paper compartment in the front panel.
Storage compartments in the dashboard panel.
Clip pad (in combination with the optional metal cover).

Additional features

CanDis: Discharge indicator and hour metre.
CanCode: Access control via PIN.
Load guard.
Connection option e.g. for terminal, scanner or printer.
Particularly robust metal battery lid for heavy-duty applications.
Cold store version.

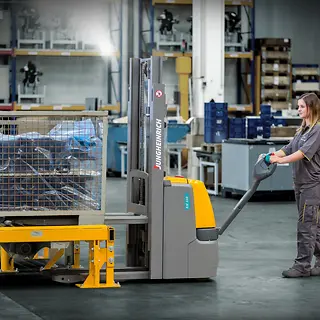

Azubis Moosburg Warenannahme VFG mit EJC110

Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EJC 110	1,000 kg	4,300 mm	6 km/h	1,822 mm	24 V
EJC 112	1,200 kg	4,700 mm	6 km/h	1,822 mm	24 V
