Electric pedestrian stacker 1,2 - 2t

2500 - 6000 mm
1200 - 2000 kg

Powerful, maintenance-free 3-phase AC drive motor.
Lifting of enclosed pallets or cross pallets.
Proportional hydraulics for accurate lifting and lowering.
Safe operation at crawl speed with the tiller raised.
Customised adaptation to a wide variety of applications.

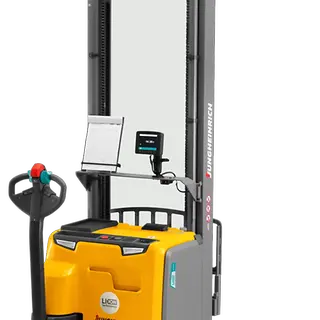

EJC 212b - 220b

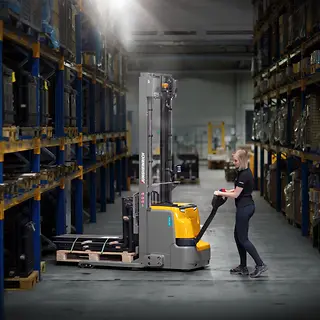

The flexible and efficient EJC 2b pedestrian-controlled truck is designed for the handling of special loads. The support arms are laterally offset and the forged forks can be lowered to the ground. As a result, access can easily be gained under loads. The forks are also available in different variants. In addition, our operationCONTROL assistance system, which warns if the residual capacity is exceeded, or the positionCONTROL rack height selector ensure safe and efficient handling of the goods. The pedestrian-controlled trucks are equipped with a powerful 3-phase AC motor, which carries out day-to-day warehouse tasks efficiently thanks to its rapid acceleration. The lift motor also impresses with its powerful performance, quiet operation and, when combined with the optimised hydraulics, particularly smooth and precise stacking. Thus, the lift motor allows for safe and fatigue-free operation.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 8 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Features

Intelligent drive and steering technology

Greater performance while simultaneously reducing operating costs using 3-phase AC motors perfectly tuned to the in-house developed controller.
High efficiency levels with excellent energy management.
Powerful acceleration and rapid direction change.
Roll-back protection on gradients.
Maintenance-free drive motor without carbon brushes.

Long operating period

Long service life with battery capacities up to 375 Ah.

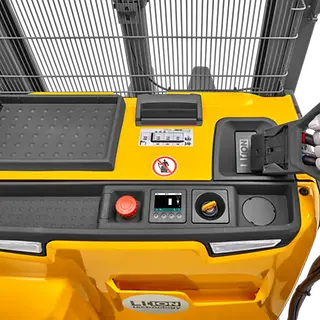

Built-in charger (optional) for easy charging at any standard 230-V socket (depending on battery type up to max. 270 Ah also available with rapid charging function for charging during a shift).

Lithium-Ionen-Technology

High availability thanks to extremely short charging times.
No battery exchange required.
Saving costs due to longer service life and zero maintenance as compared to lead-acid batteries.
No charging rooms and ventilation required as there is no build-up of gas.

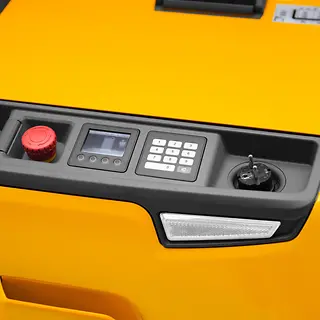

Always informed

2-inch display including load display (optional) as central display and adjustment instrument.
Battery charge status, number of operating hours and event messages.
Choice of three travel programs.
Activation of the truck by key switch or by EasyAccess via softkey, PIN code or optional transponder card.

Safe stacking and retrieval

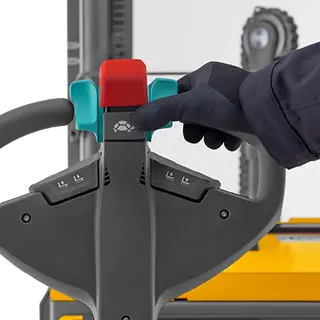

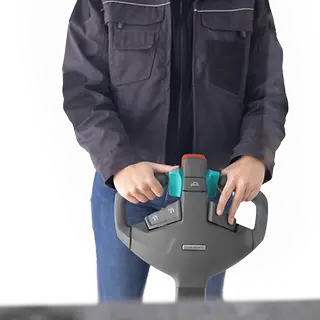

Intuitive control of all lifting and lowering functions with the multifunctional tiller arm.
Precise and gentle lifting of the load with the speed-controlled and noise-reduced hydraulic motor.
Gentle depositing of loads using proportional hydraulics.
Automatic reduction of travel speed with raised load.
Four-wheel concept for high stability.

Service-friendly design

Drive motor panel is easy to open with only 2 screws.
Service access ports on front apron.
Support wheel with bayonet mechanism for simple wheel replacement with only slightly raised truck.
Tiller electronics sealed completely against moisture and dirt as per IP 65.

Wide-tread version

Laterally offset support arms and forged forks that can be lowered to the ground.
For flexible handling of special loads, transverse Euro pallets or closed pallets (UK, US).

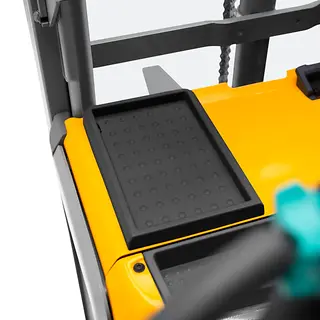

Practical storage compartments

Document holder in the front cover.
Storage compartments in the dashboard panel.
Pencil and clip pad.

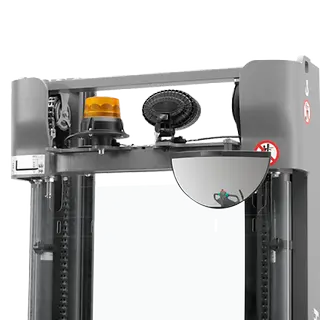

Additional equipment

6-inch additional display (optional) for assistance systems.
Twin roller support wheel to reduce wear.

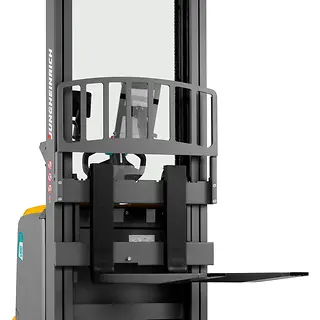

Load guard available in different heights.
Cold store version.

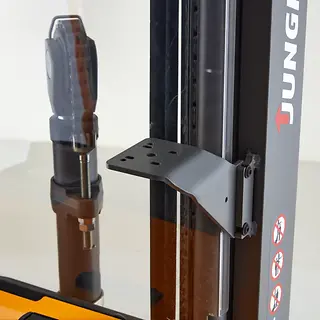

Connection option e.g. for terminal, scanner or printer.



Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EJC 212b	1,200 kg	6,000 mm	6 km/h	1,963 mm	24 V
EJC 214b	1,400 kg	6,000 mm	6 km/h	2,060 mm	24 V
EJC 216b	1,600 kg	6,000 mm	6 km/h	2,060 mm	24 V
EJC 220b	2,000 kg	6,000 mm	6 km/h	2,060 mm	24 V
