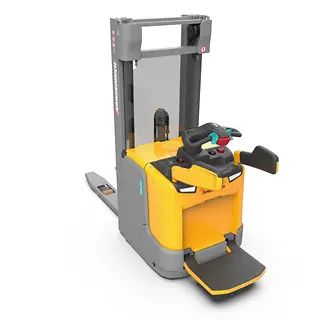

Electric pedestrian stacker 1.2 - 2.0t

2400 - 6000 mm
1200 - 2000 kg

Efficient stacking and retrieval at lift heights up to 6 m.
Manoeuvrable and compact due to small dimensions.

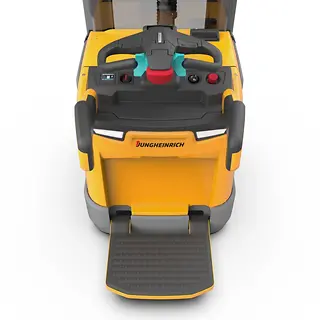

Ergonomic working due to folding stand-on platform.
Proportional hydraulics for accurate lifting and lowering.
Enhanced warehouse safety thanks to intelligent assistance systems.

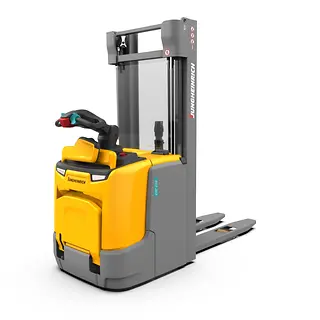

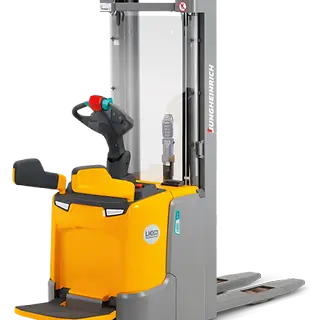

ERC 212 - 220

The efficient and versatile ERC electric stacker trucks are particularly well suited for the economic transport of goods over longer distances as well as for stacking and retrieval operations at higher racking levels. Equipped with a folding stand-on platform or optional support arm lift, they can be used very flexibly over medium distances. Thanks to the increased ground clearance, uneven ground and ramps can also be negotiated without any problems. On request, the additional support arm lift enables the double-deck transport of two pallets at the same time for a significant acceleration in efficiency of throughput. The strong and particularly precise lift motor allows for very gentle lifting and lowering of cargo at heights up to 6 metres. In addition, both the four-wheel concept and optional assistance systems such as the overload warning system operationCONTROL or the lifting height preselection positionCONTROL ensure more safety and efficiency in everyday warehouse operations.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 8 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Intelligent control and advanced drive technology

A modern 3-phase AC drive motor for greater performance and simultaneously reduced operating costs.
High efficiency levels with excellent energy management.
Powerful acceleration.
Rapid direction change.
Roll-back protection on gradients.
Increased travel speed and acceleration thanks to drivePLUS (11 km/h instead of 9 km/h) and load-dependent driving and steering behaviour.

Long operating times with lead-acid battery

Long service life with high battery capacities up to 375 Ah.
Built-in charger (24 V) for wet cell batteries and maintenance-free batteries for easy charging at any 230-V mains socket (optional).

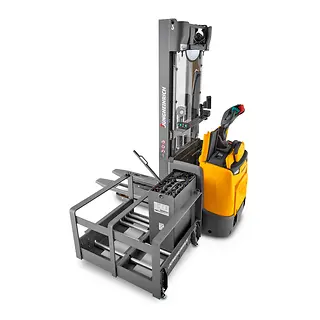

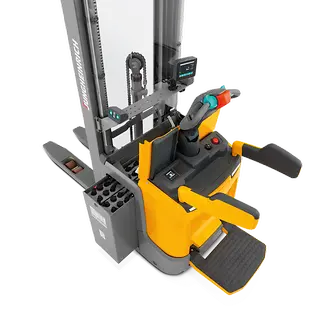

Lateral battery exchange option for intensive multi-shift environments (optional).

Available with lithium-ion technology

High availability thanks to extremely short charging times.
No battery exchange required.
Saving costs due to longer service life and zero maintenance as compared to lead-acid batteries.
No charging rooms and ventilation required as there is no build-up of gas.

Easy stacking and retrieval

Intuitive control of all lifting and lowering functions with the multifunctional tiller arm.
Precise and gentle lifting of the load by speed-controlled hydraulic motor.
Gentle depositing of loads using proportional hydraulics.
Four-wheel concept for high stability.

Comfortable and safe operation

Fatigue-free work due to electric tiller steering.
curveCONTROL automatically reduces the speed when cornering.
The sprung stand-on platform effectively removes strain on the operator's spine.

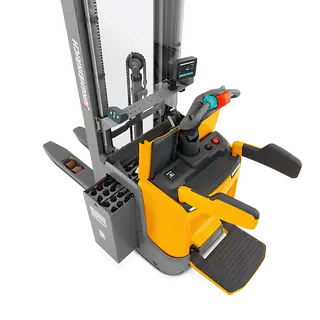

Soft lined side arms (optional) ensure a comfortable posture when cornering.

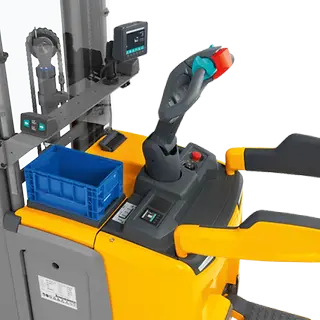

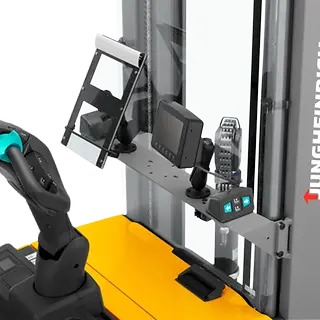

Lifting and lowering of the forks as well as driving by touch operation on the options bracket during order picking (optional).

Always informed

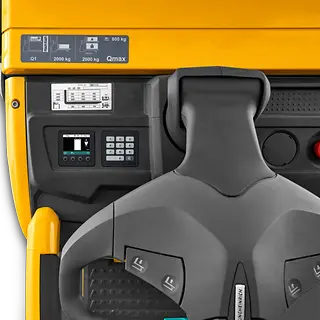

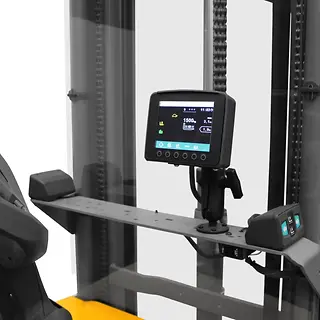

6-inch additional display including load display (optional) for assistance systems.

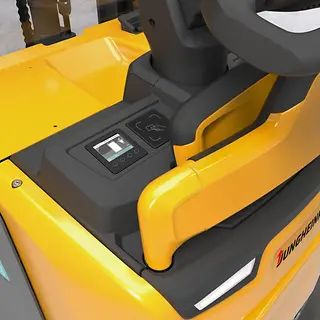

Standard display for indication of battery charge status, number of operating hours and event messages.
Choice of 3 travel programmes.

Optional assistance systems

operationCONTROL: display featuring lift height, load weight and residual carrying height, including warning if nominal and residual capacities are exceeded.
positionCONTROL: rack height select including height indicator.

Flexible options in ride-on mode

Model 1: Folding stand-on platform without side arms, travel speed 6 km/h.
Model 2: Folding stand-on platform with side arms (optional), travel speed 7 km/h.
Model 3: Folding stand-on platform with side arms and high drivePLUS speed (optional), travel speed 11 km/h.

Flexibility in pedestrian mode

The stand-on platform and side arms can be folded in when used in confined spaces.
Leading the vehicle at a speed of 4.4 km/h.

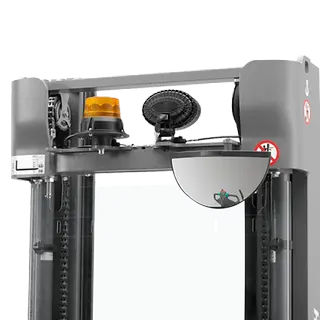

Additional Equipment

Twin roller support wheels to reduce wear.
Cold store version.

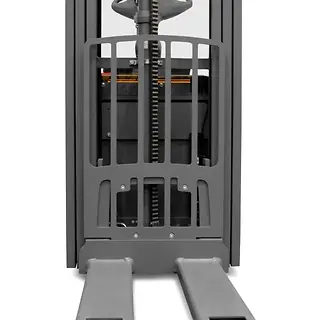

Load guard.
Wear protection of fork skids.

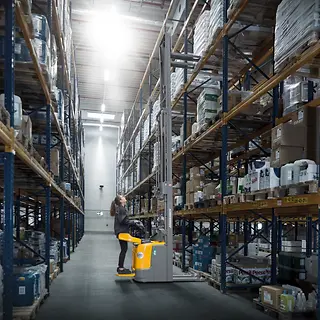

ERC-2-z_Einsatz_--_mit Lithium-Ionen Aufkleber_[MAM-50102].webp

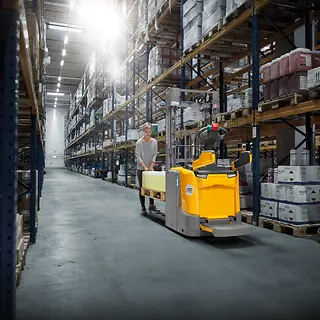

ERC-2-z_Einsatz_--_mit Lithium-Ionen Aufkleber_[MAM-50104].webp

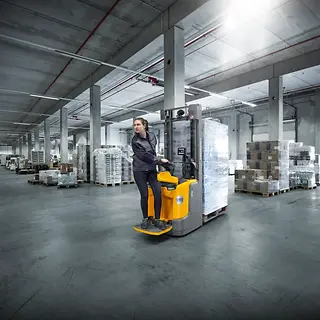

ERC-2-z_Einsatz_--_mit Lithium-Ionen Aufkleber_[MAM-50106].webp

Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
ERC 212	1,200 kg	4,700 mm	11 km/h	1,955 mm	24 V
ERC 214	1,400 kg	6,000 mm	11 km/h	1,976 mm	24 V
ERC 216	1,600 kg	6,000 mm	11 km/h	1,976 mm	24 V
ERC 220	2,000 kg	4,800 mm	10 km/h	2,048 mm	24 V
