Sideways-seated pallet truck 3.3t

115 mm
3300 kg

Multi-pallet transportation (of up to 3 pallets)
Ergonomic operator position layout
360° steering for quick direction change
2-drive motors and lateral battery exchange
48-V 3-phase AC technology for dynamic movement

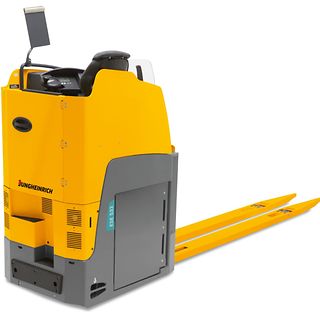

ESE 533

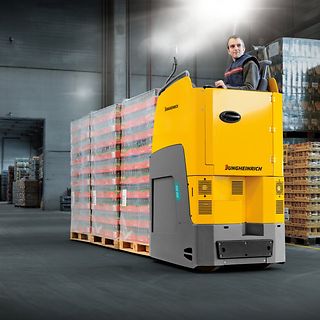

The powerful and ergonomic ESE 533 electric sideways-seated pallet truck is ideal for the transport of heavy cargo over long distances. It can move up to three pallets at once. With its two fast-reacting drive motors, it reaches high speeds effortlessly, even with heavy loads. Our focus on ergonomic work does not only ensure the comfort of the operator but directly contributes to the safety in your warehouse. The travel speed, brakes and deadman switch are all controlled by easily reached pedals. Frequent direction changes are easy to manage and due to the sideways seating position of the operator, perfect visibility in all directions is ensured. Powerful batteries and the simple lateral battery exchange guarantee the quick availability of the ESE 533. Long and intensive work hours pose no problem.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 8 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Greater efficiency with 3-phase AC technology

Powerful acceleration.
No carbon brushes – maintenance-free drive motor.
Energy recovery with regenerative braking.

Powerful batteries

48 V /1000 Ah EPzB.
Quick and easy lateral battery exchange.

Lower maintenance costs

Service-friendly components and a robust design ensure lower maintenance costs in the long term.
The drawbars are easy to adjust.
Quick access to all components through large, easy to open service hatches.
Thermal separation of drive motor, hydraulics and electrical systems.
Maintenance-free 3-phase AC drive motor without carbon brushes.

Easy-to-read operator display

High-quality control instrument for displaying the most important operating data.
Display of direction of travel and wheel position.
Battery status, with display of time remaining until the next charge required.
Speed.
Elapsed distance.
3 adjustable travel programs for individual adjustment to any requirements.
Operating hours and time of day.

Load sections for lifting pallets lengthways and traverse

The load sections come in different versions to suit different applications.
Various fork lengths.

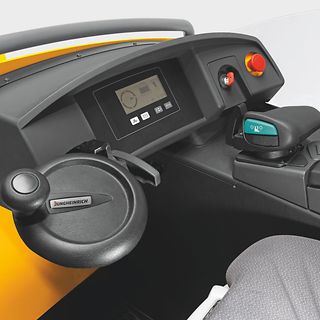

Ergonomic cockpit

Adjustable seat (seating position / body weight) for all operators.
Individual foot height adjustment.
Automotive layout of the pedals.
Generous space.
360° 3-phase AC steering with optimised steering wheel position.
Steering wheel adjustment.

Easy operation with soloPILOT

For activating all hydraulic functions, also selects the direction of travel and the horn.
All the controls are within the operator's field of vision and are clearly designated for each specific function.
Comfortable armrest.


Model Overview

Model	Load capacity	Lift height	Travel speed	Battery voltage
ESE 533	3,300 kg	115 mm	20 km/h	48 V
