Reach truck 1.6 - 2.0t

4250 - 7400 mm
1600 - 2000 kg

Optimised for combined warehouse and outdoor use
Transverse-seated for comfort and optimum visibility
Sensitive operation with soloPILOT control lever
loweringPRO option for optimisation of the lowering speed
curveCONTROL for maximum travel safety

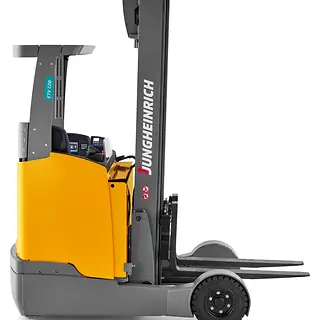

ETV C16/ C20

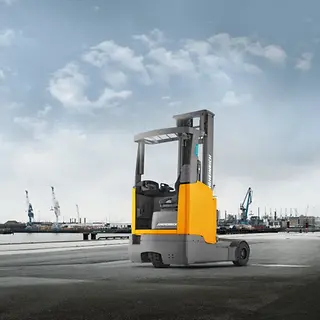

Our flexible and reliable Series C reach trucks are the best choice when it comes to efficient stacking and retrieval in combined warehouse and yard use with varying ground conditions. At great heights or in confined spaces, the accomplished trucks always move your goods safely from A to B thanks to their super-elastic tyres. The space-saving design, high performance and ideal ergonomic working conditions truly make these trucks the perfect all-round solution. Ergonomically configured displays and controls as well as excellent visibility make work easier and increase safety. The comfortable operator's cabin is optionally available for frequent outdoor use. Whether in conjunction with pallet or live storage racking, in single-shift or multi-shift applications, our versatile reach trucks achieve optimum energy efficiency through perfectly synchronised motors, controls and software systems.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 8 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

High-performance mast

Maximum safety and effective utilisation of warehouse capacity up to extreme heights.
Triplex masts with lift heights up to 7,400 mm.
Excellent visibility of the load.
Low clearance heights with high lift heights.
High residual capacities even at extreme lift heights.
Sensitive control of mast tilt.
High-quality sections provide an extremely long service life.

Available with lithium-ion technology

High availability thanks to extremely short charging times.
No battery exchange required.
Save costs with longer service life and maintenance-free operation.
Neither charging rooms nor ventilation required as there is no build-up of gas.

loweringPRO

The loweringPRO option enables maximum performance by doubling the lowering speed to up to 1.2 m/s.
The smooth mast transfer guarantees the lifting and lowering of goods with maximum safety (optional).

Optional assistance systems

operationCONTROL: The load weight is sequentially measured and compared with the residual capacity of the truck. If the limit value is approached, an optical and acoustic warning is issued.
positionCONTROL with SNAP function: The rack height select, facilitates straightforward, fast and secure stacking without having to push additional buttons.

4-Inch full-colour display

Display of direction of travel and wheel position.
Battery status, with display of time remaining until the next charge required.
Three adjustable travel programs for individual adjustment to any requirements.
Operating hours and time of day.
Lift height (optional).
Load weight (optional).
Residual capacity (optional).

Ergonomic cockpit

For activating all hydraulic functions, also selects the direction of travel and the horn.
All the controls are within the operator's field of vision and are clearly designated for each specific function.
Travel direction switch, features intuitive direction change.
Precision operation due to control of all functions.
Optimum control of additional attachments, e.g. an optional fork positioner.
multiPILOT (optional).

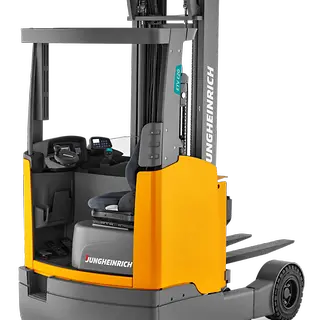

Ergonomic workstation

Generous space, even for tall operators.
Electric steering, available in 180° or 360° mode.
When driving in a straight line, the steering wheel spinner knob is always at the optimum ergonomic position.
Optional panorama overhead guard provides a clear view of the raised load.
Fabric seat with adjustment options for seating position, backrest and body weight.
Important controls within easy reach.
Automotive layout of the pedals.

Driver cabs (optional)

With roof window, windscreen and side windows for protection against frequent rain (Comfort 1).
With roof window, windscreen & side windows and a door for all-round protection (Comfort 2).



Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
ETV C16	1,600 kg	7,100 mm	12.2 km/h	2,484 mm	48 V
ETV C20	2,000 kg	7,400 mm	12.2 km/h	2,524 mm	48 V
