Reach truck 1.8 - 2.5t

4250 - 14000 mm
1800 - 2500 kg

Extremely stable design for high residual capacity
Electric load wheel brakes for increased safety
180° and 360° steering for flexible manoeuvring
loweringPRO option for optimisation of the lowering speed
Tailor-made optional features for all applications

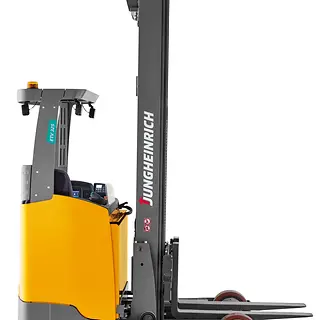

ETV/ M 318-325

Our stable and powerful Series 3 reach trucks convince with their robust frame, generous wheel diameters and an extremely robust mast. They can easily lift loads to heights of up to 14 metres. While the ETV truck can accommodate Euro pallets between its support arms, the narrower design of the ETM offers tremendous advantages in drive-in racking and block warehouses. You can significantly benefit from higher throughput with reduced energy consumption, reduced mast sway during stacking and retrieval, and accelerated fork lowering with the loweringPRO option. Advanced lithium-ion batteries with a long service life, fast booster charging and zero maintenance guarantee long-lasting performance. Equipment options such as the panoramic roof or video control for high lift heights complete this superior package.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 8 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Features

Available with lithium-ion technology

High availability thanks to extremely short charging times.
No battery exchange required.
Save costs with longer service life and maintenance-free operation.
Neither charging rooms nor ventilation required as there is no build-up of gas.

High-performance mast

Maximum safety and effective utilisation of warehouse capacity up to extreme heights.
Triplex masts with lift heights up to 14,000 mm.
Excellent visibility of the load.
Low clearance heights with high lift heights.
High residual capacities even at extreme lift heights.
Optional, active mast vibration cushioning reduces mast sway when stacking and retrieving.

loweringPRO

The loweringPRO option enables maximum performance by doubling the lowering speed to up to 1.2 m/s.
The smooth mast transfer guarantees the lifting and lowering of goods with maximum safety (optional).

Wide range of assistance systems and options

operationCONTROL continuously measures the load weight and issues a visual warning on the operator display as well as an audible warning when the residual capacity limit is approached.
positionCONTROL with SNAP function enables simple and fast stacking without additional pressing of buttons.
liftNAVIGATION automatically transfers stacking orders from the warehouse management system.
Fork camera and ergonomically adjustable motor enable especially safe and efficient stacking and retrieval.

EasyAccess

Keyless access system via softkey, PIN code or optional transponder card.

4-Inch full-colour display

Display of direction of travel and wheel position.
Battery status, with display of time remaining until the next charge required.
Three adjustable travel programs for individual adjustment to any requirements.
Operating hours and time of day.
Lift height (optional).
Load weight (optional).

Option packages for different operating conditions

Efficiency for long operating times with one battery.
drivePLUS for frequent travel over long distances.
liftPLUS for greater lift speed and increased productivity.
drive&liftPLUS for maximum productivity with optimum energy consumption.
Holder for, e.g., radio data terminal, writing board or video monitor.

Ergonomic cockpit

Generous space, even for tall operators.
All the controls are within the operator’s field of vision and are clearly designated for each specific function.
Travel direction switch, features intuitive direction change.
Precision operation due to sensitive control of all functions.
Optimum control of additional attachments, e.g. an optional fork positioner.
multiPILOT control lever optionally available.



Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
ETV 318	1,800 kg	11,510 mm	14 km/h	2,456 mm	48 V
ETV 320	2,000 kg	14,000 mm	14 km/h	2,466 mm	48 V
ETM 325	2,500 kg	11,510 mm	14 km/h	2,712 mm	48 V
ETV 325	2,500 kg	13,000 mm	14 km/h	2,546 mm	48 V

ETV/ M 318-325
