Electric reach truck 2000 kg

5000 - 11510 mm
2000 kg

Maximum throughput with the lowest energy consumption
High residual capacity (up to 8m) for more throughput
New electric system for increased safety and more options
Integrated Li-ion battery solution
Tailor-made optional features for all applications

ETV MC

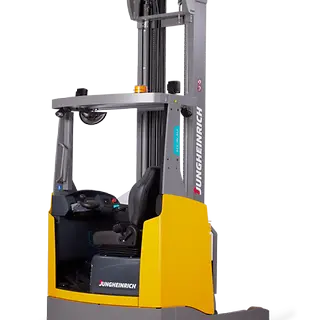

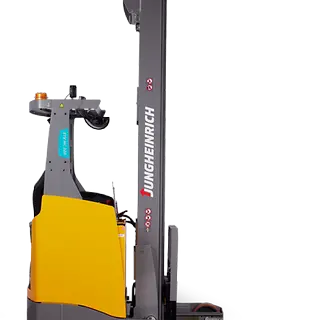

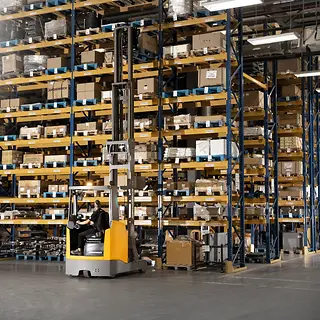

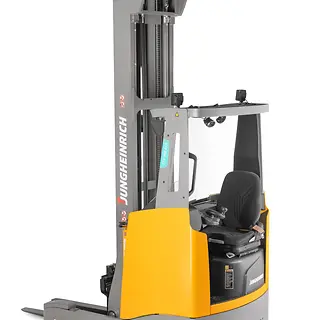

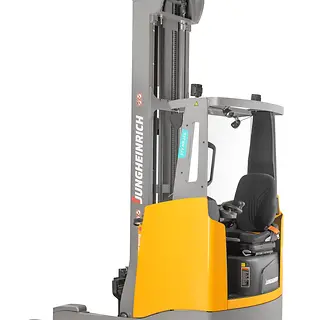

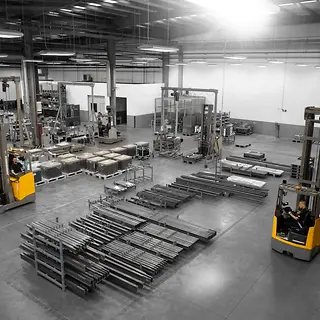

The ETV M Series Reach Truck by Jungheinrich is specifically designed for use in narrow aisle racking and retrieval applications. Its compact design, extremely reliable mast, availability of integrated li-ion battery contribute to your high throughput and great flexibility in transporting and high stacking. New ETV trucks strictly comply with the newest EN1175 regulation that guarantee your operators higher safety in the warehouse. Variety of safety options protect you all around during the whole operation time, such as assistance systems, load wheel brake. Thanks to an ergonomic concept, different version of ETV M perfectly adapt to different working environment with customized operating components and intelligent equipment options.

Features

High-performance mast

Maximum safety and effective utilization of warehouse capacity up to great heights.
Triplex masts with lift heights up to 11.500 mm.
Low clearance heights with high lift heights.
High residual capacities even at extreme lift heights.
Optional mast reach cushioning reduces mast sway when stacking and retrieving.
Increase of efficiency due to optional automatic side shift center positioning and horizontal fork positioning.

Available with integrated lithium-ion technology

Active low power protection like lifting cut, crawl speed, which can be realized via Gateway solution.
Battery state of charge and fault code can be shown on the truck display.
High availability thanks to extremely short charging times.
No battery exchange required.
Neither charging rooms nor ventilation required as there is no build-up of gas.

Optional assistance systems

positionCONTROL with SNAP function enables simple and fast stacking without additional pressing of buttons.
curveCONTROL recognizes the steering angle and uses this information to intelligently limit the driving speed.
driveCONTROL automatically switch to lower dynamics and speed at the switch from free lift to mast lift to keep operation safe.
Lift-cut as option available to limit the lift height.
Camera at different positions allows for precise and quick access of extremely high location.
Weighing system to reduce risk of overloading.

EasyAccess

Keyless access system via softkey, PIN code or optional transponder card.

4-inch full-colour display as standard option, 6-inch as an optional option

Display of direction of travel and wheel position.
Battery status, with display of time remaining until the next charge required.
Three adjustable travel programs for individual adjustment to any requirements.
Operating hours and time of day.
Lift height (optional).
Load weight (optional).

Option packages for different operating conditions

Efficiency for long operating times with one battery.
drivePLUS for frequent travel over long distances.
liftPLUS for greater lift speed and increased productivity.
drive&liftPLUS for maximum productivity with optimum energy consumption.
Cold store option for cold environment up to -28°C.
Load wheel break option for more safety when handling heavy loads.

Ergonomic workstation

Electric steering, available in 180° or 360° mode.
When driving in a straight line, the steering wheel spinner knob is always at the optimum ergonomic position.
Different choices of seat with adjustment options for seating position, backrest and body weight.
Important controls within easy reach.
Automotive layout of the pedals.
Holder for radio data terminal, writing board or video monitor etc.

Ergonomic cockpit

For activating all hydraulic functions; also selects the direction of travel and the horn.
All the controls are within the operator’s field of vision and are clearly designated for each specific function.
Travel direction switch, features intuitive direction change.
Accurate operations can be achieved through the precise functions.
Convenient control of additional attachments, e.g., a fork positioner (optional).
multiPILOT (optional).

Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
ETV MC 320	2,000 kg	11,510 mm	14 km/h	2,457 mm	48 V
