Automated vertical order picker

2750 - 6000 mm
1500 kg

Versatile, compact AGV for safe use in mixed operations
Lifting height up to 6 m and adjustable forks for high flexibility
Simple operation with intuitive interaction options
Economical 24/7 operation thanks to lithium-ion technology
Simple connection to ERP systems via Jungheinrich logistics interface

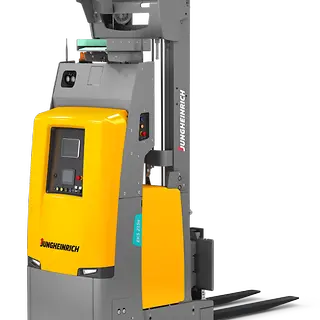

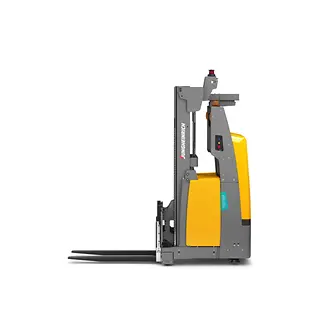

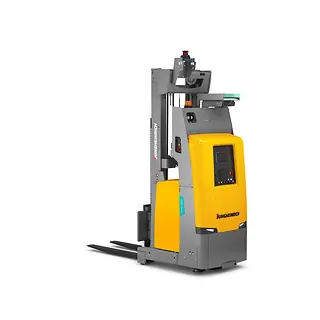

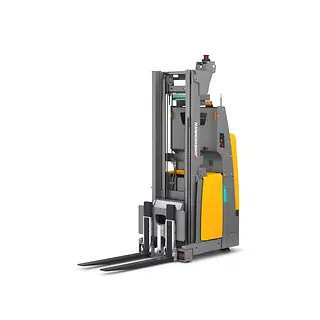

EKS 215a

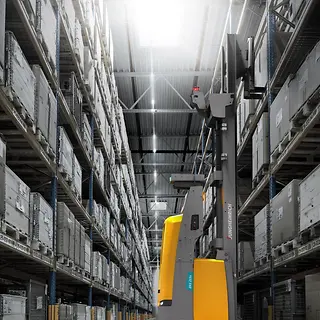

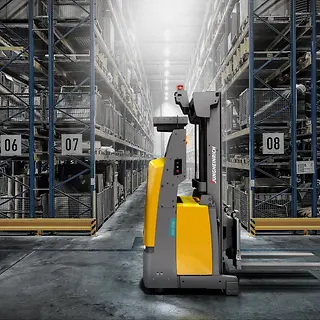

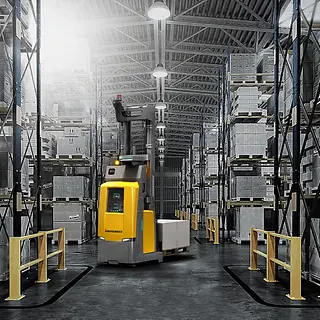

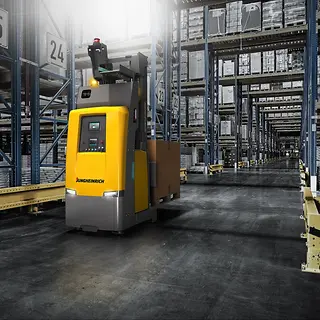

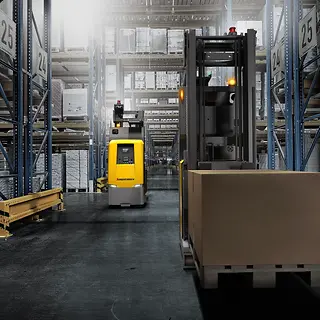

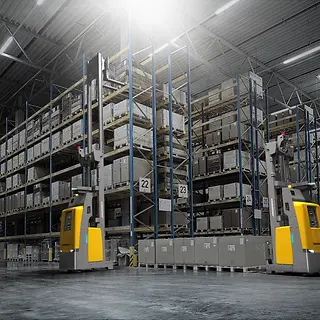

A compact and versatile Automated Guided Vehicle (AGV), our EKS 215a is the perfect choice for efficient mixed operations with manual trucks and pedestrians in warehouses and production areas. The 24-V energy concept with lithium-ion battery and automatic charging function ensures maximum flexibility in addition to the modular mast concept, while adjustable forks and a high residual capacity facilitate the handling of special load carriers in stations that cannot be driven under as well as delivery in racks. A future-proof safety concept with integrated personal protection sensors guarantees a high level of safety in mixed operation and the user-friendly HMI touch display simplifies the interaction between man and machine. Automate your manual processes with our innovative all-rounder – the EKS 215a.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 8 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Features

Comprehensive automated components and precise navigation

AGV based on series components for flexible automation – even in confined spaces.
Optimum design to meet the requirements for automating manual processes in warehouses and production areas.
Precise laser navigation using reflectors installed on the travel route – for maximum transport efficiency.

Compact design

Extremely compact truck dimensions due to optimum combination of physical and virtual footprint.
Perfectly suited to narrow working aisle widths (Ast) thanks to maximum manoeuvrability with low space requirement.

Lithium-ion technology

24-V lithium-ion technology with optional automatic charging.
High availability thanks to extremely short charging times.
Active energy and battery management.
No battery exchange required.
Zero maintenance in comparison with lead-acid batteries.
No charging rooms or ventilation required as there is no build-up of gas.

Intelligent safety functions

Depending on the speed and steering angle, standard personal protection scanners scan the travel route for obstacles in the drive direction and load direction.
Protection against damage through integrated safety sensors below the truck frame.
Smart safety concept with protective and warning fields for efficient layout planning.
Truck stops automatically in front of obstacles in its path.
Scanning ahead for obstacles when cornering.
Emergency disconnect on the truck and emergency control panel.

High level of process reliability in the warehouse

Quick overview of the status of pending transport tasks is possible on the control panel and on the HMI.
Prioritised orders can be entered and processed in the corresponding order.
Depending on the project-specific requirements, individual customer functions can be specially implemented and activated for the respective system.

Wide range of applications

Use in mixed operation, in a new build or integrated into an existing factory structure.
Transport of special load carriers, closed pallets as well as the operation of stations that cannot be driven under using adjustable forks.
Connection to existing WMS / ERP system via Jungheinrich logistics interface.

Intuitive interface

Status display at a glance.
7-inch display with touch function: error codes and handling recommendations for efficient fault rectification.
Manual intervention option by the operator: AGV can be sent to charge, park or a service location and orders can be specified directly on the display.

Extended mast grid and increased residual capacity

Wide range of masts for flexible adaptation to the warehouse layout.
Higher payload with smaller footprint and simultaneous increase in residual capacity.







Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EKS 215a	1,500 kg	6,000 mm	7 km/h	2,492 mm	24 V

EKS 215a
